KNX


The KNX integration for Home Assistant allows you to connect to KNX/IP devices.

The integration requires a local KNX/IP interface or router. Through this, it will establish a connection between Home Assistant and your KNX bus.

Please note, the KNX platform does not support KNX Secure.

There is currently support for the following device types within Home Assistant:

Basic Configuration

To use your KNX devices from Home Assistant, add the following lines to your configuration.yaml file:

knx:

In order to make use of the various platforms that KNX offers you will need to add the relevant configuration sections to your setup. This could either all be in the Home Assistant main configuration.yaml file, or in a separate YAML file that you include in the main file or even be split into multiple dedicated files. See Splitting up the configuration.

knx:
  # configure platforms directly in configuration.yaml
  binary_sensor:
    - name: "My first binary sensor"
      state_address: "1/2/3"
    # etc...
  # or outsource platform configuration to separate files
  sensor: !include knx_sensor.yaml

Please see the dedicated platform sections below about how to configure them correctly.

Configuration Variables

individual_address string (Optional, default: 15.15.250)

The KNX individual address (IA) that shall be used for routing or if a tunneling server doesn’t assign an IA at connection.

multicast_group string (Optional, default: 224.0.23.12)

The multicast group to use for automatic interface discovery and routing communication.

multicast_port integer (Optional, default: 3671)

The port for multicast communication.

rate_limit integer (Optional, default: 20)

Defines the maximum number of telegrams to be sent to the bus per second (range 1-100).

state_updater boolean (Optional, default: true)

The integration will collect the current state of each configured device from the KNX bus to display it correctly within Home Assistant. Set this option to False to prevent this behavior.

Group addresses

Group addresses are configured as strings or integers in the format “1/2/3” for 3-level GA-structure, “1/2” for 2-level GA-structure or “1” for free GA-structure.

The HA KNX integration uses configured state_address or *_state_address to update the state of a function. These addresses are read by GroupValueRead requests on startup and when there was no incoming telegram for one hour (default sync_state).

It is possible to configure passive/listening group addresses for all functions of every KNX platform (except expose and notify). This allows having multiple group addresses to update the state of its function (e.g., the brightness of a light). When group addresses are configured as a list of strings, the first item is the active sending or state-reading address and the rest is registered as passive addresses. This schema behaves like in ETS configuration where the first is the “sending” address and others are just for updating the communication object.

If your KNX device provides active state communication objects it is advised to use *_state_address instead of passive addresses as it reduces configuration complexity and avoids wrong states (e.g., when channels are logically locked).

knx:
  switch:
    - name: "Switch without passive addresses"
      address: "1/1/1" # this is the address that will be sent to
      state_address: "8/8/8"  # this is the address GroupValueRead requests are sent to
    - name: "Switch with passive addresses"
      address:
        - "1/1/1" # this is the address that will be sent to
        - "1/1/2" # this and following are passive addresses
        - "1/1/3"
      state_address:
        - "8/8/8" # this is the address GroupValueRead requests are sent to
        - "8/8/2" # this and following are passive addresses
        - "8/8/3"

Connection

Under normal conditions no connection configuration should be needed. The integration will auto-detect KNX/IP interfaces and connect to one. This requires multicast communication to work in your environment.

Tunneling

If you want to connect to a specific tunneling server or if the auto detection of the KNX/IP device does not work the IP or/and port of the tunneling device can be configurated.

knx:
  tunneling:
    host: "192.168.2.23"

Configuration Variables

host string Required

IP address of the KNX/IP tunneling device.

port integer (Optional)

Port of the KNX/IP tunneling device.

local_ip string (Optional)

IP address of the local interface.

route_back boolean (Optional, default: false)

When True the KNXnet/IP Server shall use the IP address and the port number from the IP package received as the target IP address or port number for the response to the KNXnet/IP Client (for NAT / Docker).

Routing

Explicit connection via KNX/IP routing. This requires multicast communication to work in your environment.

knx:
  routing:

Configuration Variables

local_ip string (Optional)

The local IP address of the interface that shall be used to send multicast packets. If omitted the default multicast interface is used.

Events

knx:
  event_filter:
    - "1/0/*"
    - "6/2,3,4-6/*"

Configuration Variables

event_filter list | string (Optional)

Defines a list of patterns for filtering KNX group addresses. Telegrams with destination addresses matching this pattern are sent to the Home Assistant event bus as knx_event.

Every telegram that matches the filter with its destination field will be announced on the event bus as a knx_event event containing data attributes

  • data contains the raw payload data (e.g., 1 or “[12, 55]”).
  • destination the KNX group address the telegram is sent to as string (e.g., “1/2/3).
  • direction the direction of the telegram as string (“Incoming” / “Outgoing”).
  • source the KNX individual address of the sender as string (e.g., “1.2.3”).
  • telegramtype the APCI service of the telegram. “GroupValueWrite”, “GroupValueRead” or “GroupValueResponse” generate a knx_event.

Services

In order to directly interact with the KNX bus, you can use the following services:

Send

Domain: knx
Service: send
Service Data: {"address": "1/0/15", "payload": 0, "type": "temperature"}

Configuration Variables

address string

KNX group address.

payload integer | list

Payload to send to the bus. When type is not set, raw bytes are sent. Integers are then treated as DPT 1/2/3 payloads. For DPTs > 6 bits send a list. Each value represents 1 octet (0-255). Pad with 0 to DPT byte length.

type string | integer | float

If set, the payload will not be sent as raw bytes, but encoded as given DPT. KNX sensor types are valid values - see table in KNX Sensor.

Read

You can use the homeassistant.update_entity service call to issue GroupValueRead requests for all *state_address of an entity. To manually send GroupValueRead requests use the knx.read service. The response can be used from knx_event and will be processed in KNX entities.

Domain: knx
Service: read
Service Data: {"address": "1/0/15"}

Configuration Variables

address string | list

Group address(es) to send read request to. Lists will read multiple group addresses.

# Example automation to update a cover position after 10 seconds of movement initiation
automation:
  - trigger:
      - platform: event
        event_type: knx_event
        event_data:
          # Cover move trigger
          destination: "0/4/20"
    action:
      - delay: 0:0:10
      - service: knx.read
        data:
          # Cover position address
          address: "0/4/21"

  - trigger:
      - platform: homeassistant
        event: start
    action:
      # Register the group address to trigger a knx_event
      - service: knx.event_register
        data:
          # Cover move trigger
          address: "0/4/20"
      - service: knx.read
        data:
          # Cover position address
          address: "0/4/21"

Register Event

The knx.event_register service can be used to register (or unregister) group addresses to fire knx_event Events. Events for group addresses matching the event_filter attribute in configuration.yaml cannot be unregistered. See knx_event

Configuration Variables

address string | list Required

Group address that shall be added or removed.

remove boolean (Optional, default: false)

If True the group address will be removed.

Register Exposure

The knx.exposure_register service can be used to register (or unregister) exposures to the KNX bus. Exposures defined in configuration.yaml can not be unregistered. Per address only one exposure can be registered. See expose

Configuration Variables

remove boolean (Optional, default: false)

In addition to the configuration variables of expose remove set to True can be used to remove exposures. Only address is required for removal.

Exposing entity states, entity attributes or time to KNX bus

KNX integration is able to expose entity states or attributes to KNX bus. The integration will broadcast any change of the exposed value to the KNX bus and answer read requests to the specified group address. It is also possible to expose the current time.

# Example configuration.yaml entry
knx:
  expose:
    - type: temperature
      entity_id: sensor.owm_temperature
      address: "0/0/2"
    - type: string
      address: "0/6/4"
      entity_id: sensor.owm_weather
    - type: binary
      entity_id: binary_sensor.kitchen_window
      address: "0/6/5"
    - type: binary
      entity_id: light.office
      address: "0/3/0"
      default: false
    - type: percentU8
      entity_id: light.office
      attribute: brightness
      default: 0
      address: "0/3/1"
    - type: time
      address: "0/0/1"
    - type: datetime
      address: "0/0/23"

Configuration Variables

address string Required

Group address state or attribute updates will be sent to. GroupValueRead requests will be answered.

type string | integer Required

Type of the exposed value. Either binary, time, date, datetime or any supported type of KNX Sensor (e.g., “temperature” or “humidity”).

entity_id string (Optional)

Entity ID to be exposed. Not needed for types time, date and datetime.

attribute string (Optional)

Attribute of the entity that shall be sent to the KNX bus. If not set (or None) the state will be sent. For example for a light the state is either “on” or “off”. With attribute you can expose its “brightness”.

default boolean | string | integer | float (Optional, default: None)

Default value to send to the bus if the state or attribute value is None. For example a light with state “off” has no brightness attribute so a default value of 0 could be used. If not set (or None) no value would be sent to the bus and a GroupReadRequest to the address would return the last known value.

Binary Sensor

The KNX binary sensor platform allows you to monitor KNX binary sensors.

Binary sensors are read-only. To write to the KNX bus configure an exposure KNX Integration Expose.

knx:
  binary_sensor:
    - name: "Sensor 1"
      state_address: "6/0/2"

Configuration Variables

state_address string | list Required

KNX group address of the binary sensor. DPT 1

name string (Optional)

A name for this device used within Home Assistant.

sync_state boolean | string | integer (Optional, default: true)

Actively read the value from the bus. If false no GroupValueRead telegrams will be sent to the bus. sync_state can be set to init to just initialize state on startup, expire <minutes> to read the state from the KNX bus when no telegram was received for <minutes> or every <minutes> to update it regularly every <minutes>. Maximum value for <minutes> is 1440. If just a number is configured “expire”-behaviour is used. Defaults to true which is interpreted as “expire 60”.

device_class string (Optional)

Sets the class of the device, changing the device state and icon that is displayed on the frontend.

reset_after float (Optional)

Reset back to “off” state after specified seconds.

invert boolean (Optional, default: false)

Invert the telegrams payload before processing. This is applied before context_timeout or reset_after is evaluated.

ignore_internal_state boolean (Optional, default: false)

Specifies if telegrams should ignore the internal state and always trigger a Home Assistant state update.

context_timeout float (Optional, default: None)

The time in seconds between multiple identical telegram payloads would count towards the internal counter that is used for automations. Ex. You have automations in place that trigger your lights on button press and another set of lights if you click that button twice. This setting defines the time that a second button press would count toward, so if you set this 3.0 you can take up to 3 seconds in order to trigger the second button press. If set ignore_internal_state will be set to true internally. Maximum value is 10.0.

Support for automations

You can use a built in event in order to trigger an automation (e.g. to switch on a light when a switch was pressed).

Let’s pretend you have a binary sensor with the name Livingroom.Switch and you want to switch one light on when the button was pressed once and two other lights when the button was pressed twice. context_timeout has to be configured in order for this to work.

# Example automation.yaml entry
automation:
  - trigger:
      platform: numeric_state
      entity_id: binary_sensor.livingroom_switch
      attribute: counter
      above: 0
      below: 2
    condition:
      - condition: state
        entity_id: binary_sensor.cover_abstell
        state: "on"
    action:
      - entity_id: light.hue_color_lamp_1
        service: light.turn_on
  - trigger:
      platform: numeric_state
      entity_id: binary_sensor.livingroom_switch
      attribute: counter
      above: 1
      below: 3
    condition:
      - condition: state
        entity_id: binary_sensor.cover_abstell
        state: "on"
    action:
      - entity_id: light.hue_bloom_1
        service: homeassistant.turn_on
      - entity_id: light.hue_bloom_2
        service: homeassistant.turn_on

Configuration Variables

name string (Optional)

A name for this device used within Home Assistant.

counter integer (Optional, default: 1)

Set to 2 if you only want the action to be executed if the button was pressed twice. Set to 3 for three times button pressed.

hook string (Optional, default: on)

Indicates if the automation should be executed on what state of the binary sensor. Values are “on” or “off”.

action list (Optional)

Specify a list of actions analog to the automation rules.

Climate

The KNX climate platform is used as an interface to KNX thermostats and room controllers.

To use your KNX thermostats in your installation, add the following lines to your top level KNX Integration configuration key in configuration.yaml:

# Example configuration.yaml entry
knx:
  climate:
    - name: "Kitchen"
      temperature_address: "5/1/1"
      setpoint_shift_address: "5/1/2"
      setpoint_shift_state_address: "5/1/3"
      target_temperature_state_address: "5/1/4"
      operation_mode_address: "5/1/5"
      operation_mode_state_address: "5/1/6"

Alternatively, if your device has dedicated binary group addresses for frost/night/comfort mode:

# Example configuration.yaml entry
knx:
  climate:
    - name: "Kitchen"
      temperature_address: "5/1/1"
      setpoint_shift_address: "5/1/2"
      setpoint_shift_state_address: "5/1/3"
      target_temperature_state_address: "5/1/4"
      operation_mode_frost_protection_address: "5/1/5"
      operation_mode_night_address: "5/1/6"
      operation_mode_comfort_address: "5/1/7"
      operation_mode_state_address: "5/1/8"

If your device doesn’t support setpoint_shift calculations (i.e., if you don’t provide a setpoint_shift_address value) please set the min_temp and max_temp attributes of the climate device to avoid issues with exceeding valid temperature values in the frontend. Please do also make sure to add the target_temperature_address to the configuration in this case.:

# Example configuration.yaml entry
knx:
  climate:
    - name: "Kitchen"
      temperature_address: "5/1/2"
      target_temperature_address: "5/1/4"
      target_temperature_state_address: "5/1/1"
      operation_mode_frost_protection_address: "5/1/5"
      operation_mode_night_address: "5/1/6"
      operation_mode_comfort_address: "5/1/7"
      operation_mode_state_address: "5/1/8"
      operation_mode_standby_address: "5/1/9"
      min_temp: 7.0
      max_temp: 32.0

setpoint_shift_mode allows the two following DPTs to be used:

  • DPT6002 (for 1 byte signed integer)
  • DPT9002 (for 2 byte float)

Example:

# Example configuration.yaml entry
knx:
  climate:
    - name: "Kitchen"
      temperature_address: "5/1/1"
      setpoint_shift_address: "5/1/2"
      setpoint_shift_state_address: "5/1/3"
      setpoint_shift_mode: "DPT9002"
      target_temperature_state_address: "5/1/4"
      operation_mode_address: "5/1/5"
      operation_mode_state_address: "5/1/6"

operation_mode_frost_protection_address / operation_mode_night_address / operation_mode_comfort_address / operation_mode_standby_address are not necessary if operation_mode_address is specified. If the actor doesn’t support explicit state communication objects the *_state_address can be configured with the same group address as the writeable *_address. The read flag for the *_state_address communication object has to be set in ETS to support initial reading e.g., when starting Home Assistant.

The following values are valid for the heat_cool_address and the heat_cool_state_address:

  • 0 (cooling)
  • 1 (heating)

The following values are valid for the Home Assistant Climate hvac_mode attribute. Supported values for your KNX thermostats can be specified via controller_modes configuration variable:

  • Off (maps internally to HVAC_MODE_OFF within Home Assistant)
  • Auto (maps internally to HVAC_MODE_AUTO within Home Assistant)
  • Heat (maps internally to HVAC_MODE_HEAT within Home Assistant)
  • Cool (maps internally to HVAC_MODE_COOL within Home Assistant)
  • Fan only (maps internally to HVAC_MODE_FAN_ONLY within Home Assistant)
  • Dry (maps internally to HVAC_MODE_DRY within Home Assistant)

The following presets are valid for the Home Assistant Climate preset_mode attribute. Supported values for your KNX thermostats can be specified via operation_modes configuration variable:

  • Auto (maps internally to PRESET_NONE within Home Assistant)
  • Comfort (maps internally to PRESET_COMFORT within Home Assistant)
  • Standby (maps internally to PRESET_AWAY within Home Assistant)
  • Night (maps internally to PRESET_SLEEP within Home Assistant)
  • Frost Protection (maps internally to PRESET_ECO within Home Assistant)

Configuration Variables

name string (Optional, default: KNX Climate)

A name for this device used within Home Assistant.

temperature_address string | list Required

KNX group address for reading current room temperature from KNX bus. DPT 9.001

temperature_step float (Optional, default: 0.1)

Defines the step size in Kelvin for each step of setpoint_shift.

target_temperature_address string | list (Optional)

KNX group address for setting target temperature. DPT 9.001

target_temperature_state_address string | list Required

KNX group address for reading current target temperature from KNX bus. DPT 9.001

setpoint_shift_address string | list (Optional)

KNX address for setpoint_shift. DPT 6.010 or DPT 9.002 based on setpoint_shift_mode

setpoint_shift_state_address string | list (Optional)

KNX address for reading setpoint_shift. DPT 6.010 or DPT 9.002 based on setpoint_shift_mode

setpoint_shift_mode string (Optional, default: None)

Defines the internal device DPT used. Either ‘DPT6010’, ‘DPT9002’ or None. When None or omitted the DPT is auto-assigned from the first incoming telegram.

setpoint_shift_min float (Optional, default: -6)

Minimum value of setpoint shift.

setpoint_shift_max float (Optional, default: 6)

Maximum value of setpoint shift.

active_state_address string | list (Optional)

KNX address for reading current activity. 0 is idle, 1 is active. DPT 1

command_value_state_address string | list (Optional)

KNX address for reading current command value in percent. 0 sets the climate entity to idle if active_state_address is not set. DPT 5.001

operation_mode_address string | list (Optional)

KNX address for setting operation mode (Frost protection/night/comfort). DPT 20.102

operation_mode_state_address string | list (Optional)

KNX address for reading operation mode. DPT 20.102

controller_status_address string | list (Optional)

KNX address for HVAC controller status (in accordance with KNX AN 097/07 rev 3).

controller_status_state_address string | list (Optional)

KNX address for reading HVAC controller status.

controller_mode_address string | list (Optional)

KNX address for setting HVAC controller modes. DPT 20.105

controller_mode_state_address string | list (Optional)

KNX address for reading HVAC control mode. DPT 20.105

heat_cool_address string | list (Optional)

KNX address for switching between heat/cool mode. DPT 1.100

heat_cool_state_address string | list (Optional)

KNX address for reading heat/cool mode. DPT 1.100

operation_mode_frost_protection_address string | list (Optional)

KNX address for switching on/off frost/heat protection mode. DPT 1

operation_mode_night_address string | list (Optional)

KNX address for switching on/off night mode. DPT 1

operation_mode_comfort_address string | list (Optional)

KNX address for switching on/off comfort mode. DPT 1

operation_mode_standby_address string | list (Optional)

KNX address for switching on/off standby mode. DPT 1

operation_modes list (Optional)

Overrides the supported operation modes. Provide the supported preset_mode values for your device.

controller_modes list (Optional)

Overrides the supported controller modes. Provide the supported hvac_mode values for your device.

default_controller_mode string (Optional, default: heat)

Overrides the default controller mode. Any Home Assistant hvac_mode can be configured. This can, for example, be set to “cool” for cooling-only devices.

on_off_address string | list (Optional)

KNX address for switching the climate device on/off. DPT 1

on_off_invert boolean (Optional, default: false)

Value for switching the climate device on/off is inverted.

on_off_state_address string | list (Optional)

KNX address for gathering the current state (on/off) of the climate device. DPT 1

min_temp float (Optional)

Override the minimum temperature.

max_temp float (Optional)

Override the maximum temperature.

Cover

The KNX cover platform is used as an interface to KNX covers.

Unlike most KNX devices, Home Assistant defines 0% as closed and 100% as fully open in regards to covers. The corresponding value inversion is done internally by the KNX integration.

To use your KNX covers in your installation, add the following lines to your top level KNX Integration configuration key in configuration.yaml:

# Example configuration.yaml entry
knx:
  cover:
    - name: "Kitchen shutter"
      move_long_address: "3/0/0"
      move_short_address: "3/0/1"
      stop_address: "3/0/4"
      position_address: "3/0/3"
      position_state_address: "3/0/2"
      travelling_time_down: 51
      travelling_time_up: 61

Configuration Variables

name string (Optional, default: KNX Cover)

A name for this device used within Home Assistant.

move_long_address string | list (Optional)

KNX group address for moving the cover full up or down. DPT 1

move_short_address string | list (Optional)

KNX group address for moving the cover stepwise up or down. Used by some covers also as the means to stop the cover, if no dedicated stop_address exists on the actuator. DPT 1

stop_address string | list (Optional)

KNX group address for stopping the current movement of the cover. DPT 1

position_address string | list (Optional)

KNX group address for moving the cover to the dedicated position. DPT 5.001

position_state_address string | list (Optional)

Separate KNX group address for requesting the current position of the cover. DPT 5.001

angle_address string | list (Optional)

KNX group address for tilting the cover to the dedicated angle. DPT 5.001

angle_state_address string | list (Optional)

Separate KNX group address for requesting the current tilt angle of the cover. DPT 5.001

travelling_time_down integer (Optional, default: 25)

Time cover needs to travel down in seconds. Needed to calculate the intermediate positions of cover while traveling.

travelling_time_up integer (Optional, default: 25)

Time cover needs to travel up in seconds. Needed to calculate the intermediate positions of cover while traveling.

invert_position boolean (Optional, default: false)

Set this to true if your actuator reports fully closed position as 0% in KNX.

invert_angle boolean (Optional, default: false)

Set this to true if your actuator reports fully closed tilt as 0% in KNX.

device_class string (Optional)

Sets the class of the device, changing the device state and icon that is displayed on the frontend.

Fan

The KNX fan integration is used to control KNX fans. Following control types are supported:

  • Percentage controlled: Fans that set the percentage directly from 0-100%.
  • Step controlled: Fans which have a fixed amount of steps to set. The integration will convert percentage to step automatically. The max_step attribute is set to the number of steps of the fan, not counting the off-step. Example: A fan supports the steps 0 to 3. To use this fan the max_step attribute has to be set to 3. The integration will convert the percentage 66 % to the step 2 when sending data to KNX.

To use your KNX fan in your installation, add the following lines to your top level KNX Integration configuration key in configuration.yaml:

# Example configuration.yaml entry
knx:
  fan:
    - name: "Ceiling fan"
      address: "9/0/1"
      state_address: "9/0/2"

Configuration Variables

name string (Optional)

A name for this device used within Home Assistant.

address string | list Required

KNX group address for setting the percentage or step of the fan. DPT 5.001 or DPT 5.010

state_address string | list (Optional)

KNX group address for retrieving the percentage or step of the fan. DPT 5.001 or DPT 5.010

oscillation_address string | list (Optional)

KNX group address for switching the fan oscillation on or off. DPT 1

oscillation_state_address string | list (Optional)

KNX group address for retrieving the state of the fan oscillation. DPT 1

max_step integer (Optional)

The maximum amount of steps for a step-controlled fan. If set, the integration will convert percentages to steps automatically.

Light

The KNX light integration is used as an interface to control KNX actuators for lighting applications such as:

  • Switching actuators
  • Dimming actuators
  • LED controllers
  • DALI gateways

To use your KNX light in your installation, add the following lines to your top level KNX Integration configuration key in configuration.yaml:

# Example configuration.yaml entry
knx:
  light:
    - name: "Kitchen"
      address: "1/0/9"

Configuration Variables

address string | list Required

KNX group address for switching the light on and off. DPT 1.001

state_address string | list (Optional)

KNX group address for retrieving the switch state of the light. DPT 1.001

name string (Optional)

A name for this device used within Home Assistant.

brightness_address string | list (Optional)

KNX group address for setting the brightness of the light in percent (absolute dimming). DPT 5.001

brightness_state_address string | list (Optional)

KNX group address for retrieving the brightness of the light in percent. DPT 5.001

color_address string | list (Optional)

KNX group address for setting the RGB color of the light. DPT 232.600

color_state_address string | list (Optional)

KNX group address for retrieving the RGB color of the light. DPT 232.600

rgbw_address string | list (Optional)

KNX group address for setting the RGBW color of the light. DPT 251.600

rgbw_state_address string | list (Optional)

KNX group address for retrieving the RGBW color of the light. DPT 251.600

hue_address string | list (Optional)

KNX group address for setting the hue of the light color in degrees. DPT 5.003

hue_state_address string | list (Optional)

KNX group address for retrieving the hue of the light color in degrees. DPT 5.003

saturation_address string | list (Optional)

KNX group address for setting the saturation of the light color in percent. DPT 5.001

saturation_state_address string | list (Optional)

KNX group address for retrieving the saturation of the light color in percent. DPT 5.001

xyy_address string | list (Optional)

KNX group address for setting the xyY color of the light. DPT 242.600

xyy_state_address string | list (Optional)

KNX group address for retrieving the xyY color of the light. DPT 242.600

individual_colors map (Optional)

Used when the actuator only supports individual group addresses for colors. When individual_colors is used the root address key may be omitted.

red map Required

Group addresses for the red component.

address string | list (Optional)

KNX group address to switch the red component. DPT 1.001

state_address string | list (Optional)

KNX group address for the state of the red component. DPT 1.001

brightness_address string | list Required

KNX group address to set the brightness of the red component. DPT 5.001

brightness_state_address string | list (Optional)

KNX group address for the current brightness of the red component. DPT 5.001

green map Required

Group addresses for the green component. Same keys available as for red component above.

blue map Required

Group addresses for the blue component. Same keys available as for red component above.

white map (Optional)

Group addresses for the white component. Same keys available as for red component above.

color_temperature_address string | list (Optional)

KNX group address for setting the color temperature of the light. DPT 5.001 or 7.600 based on color_temperature_mode

color_temperature_state_address string | list (Optional)

KNX group address for retrieving the color temperature of the light. DPT 5.001 or 7.600 based on color_temperature_mode

color_temperature_mode string (Optional, default: absolute)

Color temperature group address data type. absolute color temperature in Kelvin. color_temperature_address -> DPT 7.600. relative color temperature in percent cold white (0% warmest; 100% coldest). color_temperature_address -> DPT 5.001

min_kelvin integer (Optional, default: 2700)

Warmest possible color temperature in Kelvin. Used in combination with color_temperature_address.

max_kelvin integer (Optional, default: 6000)

Coldest possible color temperature in Kelvin. Used in combination with color_temperature_address.

Many KNX devices can change their state internally without a message to the switch address on the KNX bus, e.g., if you configure a scene or a timer on a channel. The optional state_address can be used to inform Home Assistant about these state changes. If a KNX message is seen on the bus addressed to the given state_address (in most cases from the light actuator), it will overwrite the state of the object.

For switching/light actuators that are only controlled by a single group address and don’t have dedicated state communication objects you can set state_address to the same value as address.

Note on tunable white: Home Assistant uses Mireds as the unit for color temperature, whereas KNX typically uses Kelvin. The Kelvin/Mireds relationship is reciprocal, not linear, therefore the color temperature pickers (sliders) in Home Assistant may not align with ones of KNX visualizations. This is the expected behavior.

Extended configuration examples

knx:
  light:
    # dimmable light
    # color mode: brightness
    - name: "Dimmable light"
      address: "1/0/9"
      state_address: "1/1/9"
      brightness_address: "1/2/9"
      brightness_state_address: "1/3/9"
    # XYY light
    # color mode: xy
    - name: "XYY light"
      address: "1/0/9"
      state_address: "1/1/9"
      brightness_address: "1/2/9"  # optional - if not set brightness will be sent over the xyy data point
      brightness_state_address: "1/3/9"
      xyy_address: "1/4/9"
      xyy_state_address: "1/5/9"
    # HS light
    # color mode: hs
    - name: "HS light"
      address: "1/0/9"
      state_address: "1/1/9"
      brightness_address: "1/2/9"  # required for HS
      brightness_state_address: "1/3/9"
      hue_address: "1/4/8"
      hue_state_address: "1/5/8"  # required for HS
      saturation_address: "1/4/9"
      saturation_state_address: "1/5/9"  # required for HS
    # RGB light
    # color mode: rgb
    - name: "RGB light"
      address: "1/0/9"
      state_address: "1/1/9"
      brightness_address: "1/2/9"  # optional for RGB lights
      brightness_state_address: "1/3/9"
      color_address: "1/4/9"
      color_state_address: "1/5/9"
    # RGBW light
    # color mode: rgbw
    - name: "RGBW light"
      address: "0/4/83"
      state_address: "0/4/84"
      brightness_address: "0/4/85"  # optional for RGBW lights
      brightness_state_address: "0/4/86"
      rgbw_address: "0/4/87"
      rgbw_state_address: "0/4/88"
    # RGB(W) individual object light
    # color mode: rgb / rgbw
    - name: "RGBW individual light"
      address: "1/0/9"  # optional for individual color lights
      individual_colors:
        red:
          brightness_address: "0/4/61"
          brightness_state_address: "0/5/61"
        green:
          brightness_address: "0/4/62"
          brightness_state_address: "0/5/62"
        blue:
          brightness_address: "0/4/63"
          brightness_state_address: "0/5/63"
        white:
          brightness_address: "0/4/64"
          brightness_state_address: "0/5/64"
    # tunable white light
    # color mode: color_temp
    - name: "TW light"
      address: "1/0/21"
      state_address: "1/1/21"
      brightness_address: "1/2/21"
      brightness_state_address: "1/3/21"
      color_temperature_address: "1/4/21"
      color_temperature_state_address: "1/5/21"
      color_temperature_mode: absolute
      min_kelvin: 2550
      max_kelvin: 6200
    # actuator without dedicated state communication object
    # color mode: onoff
    - name: "Simple light"
      address: "1/0/5"
      state_address: "1/0/5"

Notify

The KNX notify platform allows you to send notifications to KNX devices as DPT16 strings.

knx:
  notify:
    - name: "Alarm"
      address: "5/1/10"

Configuration Variables

address string | list Required

KNX group address of the notification. DPT 16.000

name string (Optional)

A name for this device used within Home Assistant.

Number

The KNX number platform allows to send generic numeric values to the KNX bus and update its state from received telegrams. It can optionally respond to read requests from the KNX bus with its current state.

Number entities without a state_address will restore their last known state after Home Assistant was restarted.

Numbers having a state_address configured request their current state from the KNX bus.

# Example configuration.yaml entry
knx:
  number:
    - name: "Duration"
      address: "0/0/1"
      type: time_period_sec
    - name: "Volume"
      address: "0/0/2"
      state_address: "0/0/3"
      type: percent
    - name: "Temperature threshold"
      address: "0/0/4"
      respond_to_read: true
      type: temperature
      min: 20
      max: 24.5

Configuration Variables

name string (Optional)

A name for this device used within Home Assistant.

address string | list Required

Group address new values will be sent to.

state_address string | list (Optional)

Group address for retrieving the state from the KNX bus.

type string | integer Required

Any supported type of KNX Sensor representing a numeric value (e.g., “percent” or “temperature”).

respond_to_read boolean (Optional, default: false)

Respond to GroupValueRead telegrams received to the configured address.

min float (Optional)

Minimum value that can be sent. Defaults to the type DPT minimum value.

max float (Optional)

Maximum value that can be sent. Defaults to the type DPT maximum value.

Scene

The KNX scenes platform allows you to trigger KNX scenes. These entities are write-only.

# Example configuration.yaml entry
knx:
  scene:
    - name: "Romantic"
      address: 8/8/8
      scene_number: 23

Configuration Variables

address string | list Required

KNX group address for the scene. DPT 17.001

scene_number integer Required

KNX scene number to be activated (range 1..64 ).

name string (Optional)

A name for this device used within Home Assistant.

Select

The KNX select platform allows the user to define a list of values that can be selected via the frontend and can be used within conditions of automation. When a user selects a new item, the assigned generic raw payload is sent to the KNX bus. A received telegram updates the state of the select entity. It can optionally respond to read requests from the KNX bus with its current state.

Select entities without a state_address will restore their last known state after Home Assistant was restarted.

Selects having a state_address configured request their current state from the KNX bus.

# Example configuration.yaml entry
knx:
  select:
    - name: "DPT 2 selector"
      address: "0/0/1"
      payload_length: 0
      options:
        - option: "No control"
          payload: 0
        - option: "Control On"
          payload: 0b10
        - option: "Control Off"
          payload: 0b11
    - name: "DHWMode"
      address: "0/0/2"
      state_address: "0/0/3"
      payload_length: 1
      options:
        - option: "Auto"
          payload: 0
        - option: "LegioProtect"
          payload: 1
        - option: "Normal"
          payload: 2
        - option: "Reduced"
          payload: 3
        - option: "Off/FrostProtect"
          payload: 4

Configuration Variables

name string (Optional)

A name for this device used within Home Assistant.

address string | list Required

Group address new values will be sent to.

state_address string | list (Optional)

Group address for retrieving the state from the KNX bus.

payload_length integer Required

The length of the payload expected for the DPT. Use 0 for DPT 1, 2 or 3.

options list Required

List of options to choose from. Each option and payload have to be unique.

option string Required

The name of the option used to trigger the assigned payload.

payload integer Required

The raw payload assigned to the option.

respond_to_read boolean (Optional, default: false)

Respond to GroupValueRead telegrams received to the configured address.

sync_state boolean | string | integer (Optional, default: true)

Actively read the value from the bus. If false no GroupValueRead telegrams will be sent to the bus. sync_state can be set to init to just initialize state on startup, expire <minutes> to read the state from the KNX bus when no telegram was received for <minutes> or every <minutes> to update it regularly every <minutes>. Maximum value for <minutes> is 1440. If just a number is configured “expire”-behaviour is used. Defaults to true which is interpreted as “expire 60”.

Sensor

The KNX sensor platform allows you to monitor KNX sensors.

Sensors are read-only. To write to the KNX bus configure a Number, an exposure KNX Integration Expose or use the knx.send service.

# Example configuration.yaml entry
knx:
  sensor:
    - name: "Heating Valve 1"
      state_address: "2/0/0"
      type: percent

In order to actively read the sensor data from the bus every 30 minutes you can add the following lines to your configuration.yaml:

# Example configuration.yaml entry
knx:
  sensor:
    - name: "Heating Valve 1"
      state_address: "2/0/0"
      type: percent
      sync_state: every 30

Configuration Variables

state_address string | list Required

KNX group address of the sensor.

type string | integer Required

A type from the value types table below must be defined. The DPT of the group address should match the expected KNX DPT to be parsed correctly.

name string (Optional)

A name for this device used within Home Assistant.

sync_state boolean | string | integer (Optional, default: true)

Actively read the value from the bus. If false no GroupValueRead telegrams will be sent to the bus. sync_state can be set to init to just initialize state on startup, expire <minutes> to read the state from the KNX bus when no telegram was received for <minutes> or every <minutes> to update it regularly every <minutes>. Maximum value for <minutes> is 1440. If just a number is configured “expire”-behaviour is used. Defaults to true which is interpreted as “expire 60”.

always_callback boolean (Optional, default: false)

Defines if telegrams with equal payload as the previously received telegram should trigger a state update within Home Assistant.

state_class string (Optional)

Sets the state_class of the sensor.

Value Types

KNX DPT type size in byte range unit
5 1byte_unsigned 1 0 … 255
5.001 percent 1 0 … 100 %
5.003 angle 1 0 … 360 °
5.004 percentU8 1 0 … 255 %
5.005 decimal_factor 1 0 … 255
5.006 tariff 1 0 … 254
5.010 pulse 1 0 … 255 counter pulses
6 1byte_signed 1 -128 … 127
6.001 percentV8 1 -128 … 127 %
6.010 counter_pulses 1 -128 … 127 counter pulses
7 2byte_unsigned 2 0 … 65535
7.001 pulse_2byte 2 0 … 65535 pulses
7.002 time_period_msec 2 0 … 65535 ms
7.003 time_period_10msec 2 0 … 65535 ms
7.004 time_period_100msec 2 0 … 65535 ms
7.005 time_period_sec 2 0 … 65535 s
7.006 time_period_min 2 0 … 65535 min
7.007 time_period_hrs 2 0 … 65535 h
7.011 length_mm 2 0 … 65535 mm
7.012 current 2 0 … 65535 mA
7.013 brightness 2 0 … 65535 lx
7.600 color_temperature 2 0 … 65535 K
8 2byte_signed 2 -32768 … 32767
8.001 pulse_2byte_signed 2 -32768 … 32767 pulses
8.002 delta_time_ms 2 -32768 … 32767 ms
8.003 delta_time_10ms 2 -32768 … 32767 ms
8.004 delta_time_100ms 2 -32768 … 32767 ms
8.005 delta_time_sec 2 -32768 … 32767 s
8.006 delta_time_min 2 -32768 … 32767 min
8.007 delta_time_hrs 2 -32768 … 32767 h
8.010 percentV16 2 -32768 … 32767 %
8.011 rotation_angle 2 -32768 … 32767 °
9 2byte_float 2 -671088.64 … 670760.96
9.001 temperature 2 -273 … 670760 °C
9.002 temperature_difference_2byte 2 -670760 … 670760 K
9.003 temperature_a 2 -670760 … 670760 K/h
9.004 illuminance 2 0 … 670760 lx
9.005 wind_speed_ms 2 0 … 670760 m/s
9.006 pressure_2byte 2 0 … 670760 Pa
9.007 humidity 2 0 … 670760 %
9.008 ppm 2 -671088.64 … 670760.96 ppm
9.010 time_1 2 -670760 … 670760 s
9.011 time_2 2 -670760 … 670760 ms
9.020 voltage 2 -671088.64 … 670760.96 mV
9.021 curr 2 -671088.64 … 670760.96 mA
9.022 power_density 2 -671088.64 … 670760.96 W/m²
9.023 kelvin_per_percent 2 -671088.64 … 670760.96 K/%
9.024 power_2byte 2 -671088.64 … 670760.96 kW
9.025 volume_flow 2 -671088.64 … 670760.96 l/h
9.026 rain_amount 2 -671088.64 … 670760.96 l/m²
9.027 temperature_f 2 -459.6 … 670760 °F
9.028 wind_speed_kmh 2 0 … 670760 km/h
9.? enthalpy 2 -671088.64 … 670760.96 H
12 4byte_unsigned 4 0 … 4294967295
12.1200 volume_liquid_litre 4 0 … 4294967295 l
12.1201 volume_m3 4 0 … 4294967295
13 4byte_signed 4 -2147483648 … 2147483647
13.001 pulse_4byte 4 -2147483648 … 2147483647 pulses
13.002 flow_rate_m3h 4 -2147483648 … 2147483647 m³/h
13.010 active_energy 4 -2147483648 … 2147483647 Wh
13.011 apparant_energy 4 -2147483648 … 2147483647 VAh
13.012 reactive_energy 4 -2147483648 … 2147483647 VARh
13.013 active_energy_kwh 4 -2147483648 … 2147483647 kWh
13.014 apparant_energy_kvah 4 -2147483648 … 2147483647 kVAh
13.015 reactive_energy_kvarh 4 -2147483648 … 2147483647 kVARh
13.100 long_delta_timesec 4 -2147483648 … 2147483647 s
14 4byte_float 4
14.000 acceleration 4 m/s²
14.001 acceleration_angular 4 rad/s²
14.002 activation_energy 4 J/mol
14.003 activity 4 s⁻¹
14.004 mol 4 mol
14.005 amplitude 4
14.006 angle_rad 4 rad
14.007 angle_deg 4 °
14.008 angular_momentum 4 J s
14.009 angular_velocity 4 rad/s
14.010 area 4
14.011 capacitance 4 F
14.012 charge_density_surface 4 C/m²
14.013 charge_density_volume 4 C/m³
14.014 compressibility 4 m²/N
14.015 conductance 4 S
14.016 electrical_conductivity 4 S/m
14.017 density 4 kg/m³
14.018 electric_charge 4 C
14.019 electric_current 4 A
14.020 electric_current_density 4 A/m²
14.021 electric_dipole_moment 4 C m
14.022 electric_displacement 4 C/m²
14.023 electric_field_strength 4 V/m
14.024 electric_flux 4 c
14.025 electric_flux_density 4 C/m²
14.026 electric_polarization 4 C/m²
14.027 electric_potential 4 V
14.028 electric_potential_difference 4 V
14.029 electromagnetic_moment 4 A m²
14.030 electromotive_force 4 V
14.031 energy 4 J
14.032 force 4 N
14.033 frequency 4 Hz
14.034 angular_frequency 4 rad/s
14.035 heatcapacity 4 J/K
14.036 heatflowrate 4 W
14.037 heat_quantity 4 J
14.038 impedance 4 Ω
14.039 length 4 m
14.040 light_quantity 4 lm s
14.041 luminance 4 cd/m²
14.042 luminous_flux 4 lm
14.043 luminous_intensity 4 cd
14.044 magnetic_field_strength 4 A/m
14.045 magnetic_flux 4 Wb
14.046 magnetic_flux_density 4 T
14.047 magnetic_moment 4 A m²
14.048 magnetic_polarization 4 T
14.049 magnetization 4 A/m
14.050 magnetomotive_force 4 A
14.051 mass 4 kg
14.052 mass_flux 4 kg/s
14.053 momentum 4 N/s
14.054 phaseanglerad 4 rad
14.055 phaseangledeg 4 °
14.056 power 4 W
14.057 powerfactor 4 cosΦ
14.058 pressure 4 Pa
14.059 reactance 4 Ω
14.060 resistance 4 Ω
14.061 resistivity 4 Ω m
14.062 self_inductance 4 H
14.063 solid_angle 4 sr
14.064 sound_intensity 4 W/m²
14.065 speed 4 m/s
14.066 stress 4 Pa
14.067 surface_tension 4 N/m
14.068 common_temperature 4 °C
14.069 absolute_temperature 4 K
14.070 temperature_difference 4 K
14.071 thermal_capacity 4 J/K
14.072 thermal_conductivity 4 W/mK
14.073 thermoelectric_power 4 V/K
14.074 time_seconds 4 s
14.075 torque 4 N m
14.076 volume 4
14.077 volume_flux 4 m³/s
14.078 weight 4 N
14.079 work 4 J
16.000 string 14
17.001 scene_number 1 1 … 64

More examples

# Example configuration.yaml entry
knx:
  sensor:
    - name: "Heating Valve 1"
      state_address: "2/0/0"
      sync_state: init
      type: percent
    - name: "Kitchen Temperature"
      state_address: "6/2/1"
      sync_state: every 60
      type: temperature
      state_class: measurement

Switch

The KNX switch platform is used as an interface to switching actuators.

knx:
  switch:
    - name: "Kitchen coffee maker"
      address: "1/1/6"

Configuration Variables

address string | list Required

KNX group address for switching the switch on/off. DPT 1

name string (Optional, default: KNX Switch)

A name for this device used within Home Assistant.

state_address string | list (Optional)

Separate KNX group address for retrieving the switch state. DPT 1

invert boolean (Optional, default: false)

Invert the telegrams payload before processing or sending.

respond_to_read boolean (Optional, default: false)

Respond to GroupValueRead telegrams received to the configured address.

The optional state_address can be used to inform Home Assistant about state changes not triggered by a telegram to the address e.g., if you configure a timer on a channel. If a KNX message is seen on the bus addressed to the given state address, this will overwrite the state of the switch object.

Switch entities without a state_address will restore their last known state after Home Assistant was restarted. Switches having a state_address configured request their current state from the KNX bus.

Weather

The KNX weather platform is used as an interface to KNX weather stations.

To use your KNX weather station in your installation, add the following lines to your top level KNX Integration configuration key in configuration.yaml:

# Example configuration.yaml entry
knx:
  weather:
    - name: "Home"
      address_temperature: "7/0/0"
      address_brightness_south: "7/0/1"
      address_brightness_west: "7/0/2"
      address_brightness_east: "7/0/3"
      address_brightness_north: "7/0/11"
      address_wind_speed: "7/0/4"
      address_rain_alarm: "7/0/5"
      address_frost_alarm: "7/0/6"
      address_wind_alarm: "7/0/7"
      address_day_night: "7/0/8"
      address_air_pressure: "7/0/9"
      address_humidity: "7/0/10"
      sync_state: true

Configuration Variables

name string (Optional, default: KNX Weather)

A name for this device used within Home Assistant.

address_temperature string | list Required

KNX group address for reading current outside temperature from KNX bus. DPT 9.001

address_brightness_south string | list (Optional)

KNX group address for reading current brightness to south coordinate from KNX bus. DPT 9.004

address_brightness_west string | list (Optional)

KNX group address for reading current brightness to west coordinate from KNX bus. DPT 9.004

address_brightness_east string | list (Optional)

KNX group address for reading current brightness to east coordinate from KNX bus. DPT 9.004

address_brightness_north string | list (Optional)

KNX group address for reading current brightness to north coordinate from KNX bus. DPT 9.004

address_wind_bearing string | list (Optional)

KNX group address for reading current wind bearing from KNX bus. DPT 5.003

address_wind_speed string | list (Optional)

KNX group address for reading current wind speed from KNX bus. DPT 9.005

address_rain_alarm string | list (Optional)

KNX group address for reading if rain alarm is on/off.

address_frost_alarm string | list (Optional)

KNX group address for reading if frost alarm is on/off.

address_wind_alarm string | list (Optional)

KNX group address for reading if wind alarm is on/off.

address_day_night string | list (Optional)

KNX group address for reading if it’s day/night.

address_air_pressure string | list (Optional)

KNX address reading current air pressure. DPT 9.006

address_humidity string | list (Optional)

KNX address for reading current humidity. DPT 9.007

sync_state boolean (Optional, default: true)

Actively read the value from the bus. If false no GroupValueRead telegrams will be sent to the bus.

Troubleshooting / Common issues

Logs for the KNX integration

xknx, the library used for KNX communication, provides various logging handlers for monitoring and debug purposes. Add the following lines to your Home Assistant configuration.yaml to activate them:

logger:
  default: warning
  logs:
    # For most debugging needs `xnx.log` and one of `xknx.knx` or `xknx.telegram` are a good choice.
    xknx: debug  # sets the level of all loggers
    xknx.log: debug  # provides general information (connection, etc.)
    xknx.raw_socket: debug  # logs incoming UDP frames in raw hex format
    xknx.knx: debug  # logs incoming and outgoing KNX/IP frames at socket level
    xknx.telegram: debug  # logs telegrams before they are being processed at device level or sent to an interface
    xknx.state_updater: debug  # provides information about the state updater

You can use the service logger.set_level to change the log level of a handler on a running instance.

Group address can not be read

Every *_state_address is read on startup sequentially if not configured differently. If you see the following errors in your log, a group address could not be read by a GroupValueRead request from Home Assistant in time.

> Could not sync group address '1/2/3' (Entity name - Feature)
> Error: KNX bus did not respond in time (2.0 secs) to GroupValueRead request for: '1/2/3'

No communication object (CO) assigned to the group address (GA) has the Read-Flag set in ETS

  • Enable the read flag for one CO assigned to the GA. Use the one most likely to hold the current state (e.g., for a light entity’s brightness_state_address the according CO of the dimming actuator).

Response telegrams are not passing a line coupler, router or other filter in the installation

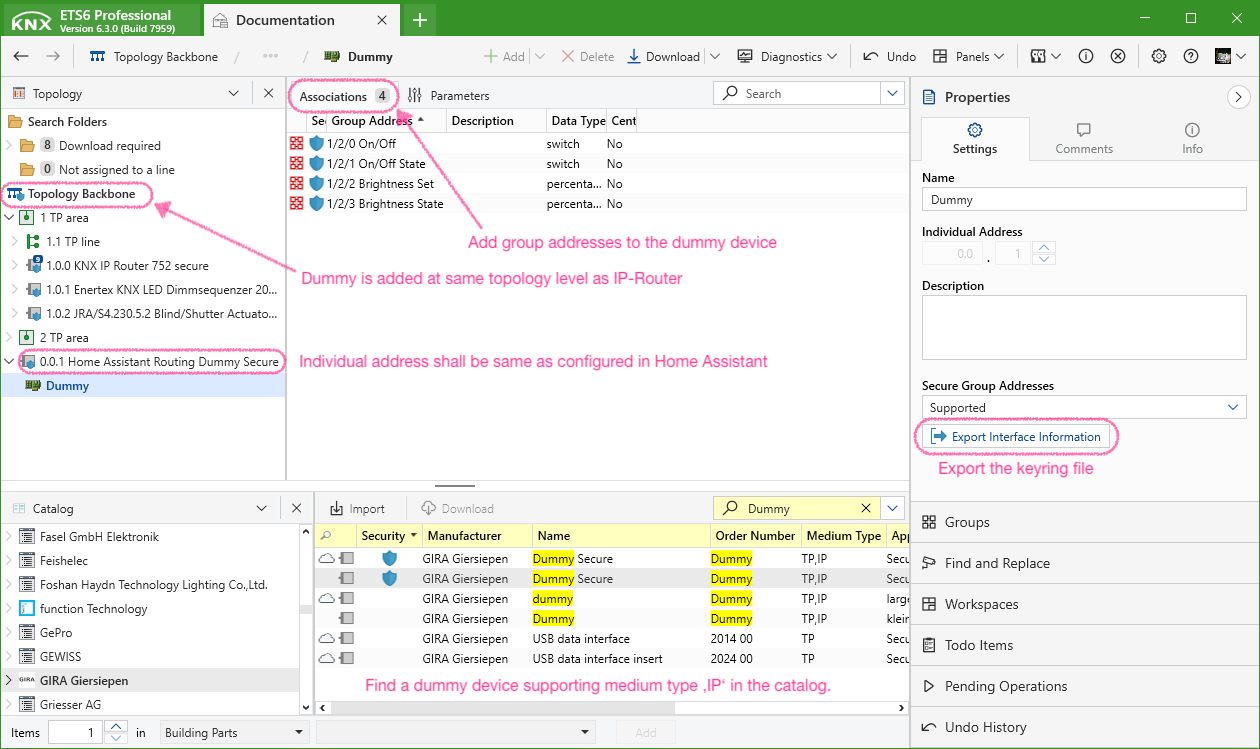

  • Use a dummy device in ETS for Home Assistant. These can be found in the ETS online catalog. Assign it to the line your interface connects Home Assistant to and link its communication objects to the group addresses you are using in Home Assistant. ETS will generate filter tables that are applied to your line couplers after updating their application.

Unresponsive system

  • The timeout for logging the errors (2 seconds) is started when the GroupValueRead request is scheduled to be sent. On systems experiencing high loads sending can be delayed (e.g., Raspberry Pi running lots of integrations at startup). Incoming response telegrams are always processed, so no information gets lost.

Duplicate entities

If you find following error in your log you seem to have a duplicated entity in your configuration.

Platform knx does not generate unique IDs. ID 1/2/3 already exists - ignoring platform.name

The unique_id for KNX entities is generated based on required configuration values.

  • binary_sensor: state_address
  • climate: temperature_address target_temperature_state_address target_temperature_address setpoint_shift_address
  • cover: move_long_address position_address
  • fan: address
  • light: address or all combined brightness_address if only individual_colors is used
  • notify: address
  • scene: address and scene_number
  • sensor: state_address
  • switch: address
  • weather: address_temperature

There can not be multiple entities on the same platform sharing these exact group addresses, even if they differ in other configuration.

xknx.yaml configuration

> The 'config_file' option near /homeassistant/configuration.yaml:42 is deprecated, please remove it from your configuration
> Invalid config for [knx]: [config_file] is an invalid option for [knx]. Check: knx->knx->config_file.

The feature to specify a xknx configuration schema file in the Home Assistant configuration YAML file (via config_file:) is deprecated since Home Assistant 2021.4. You can use the xknx.yaml config converter to convert it to a Home Assistant compatible configuration.yaml schema.
