This integration adds “local push” support for INSTEON Modems allowing linked INSTEON devices to be used within Home Assistant.

There is currently support for the following device types within Home Assistant:

  • Binary Sensor
  • Climate
  • Cover
  • Fan
  • Light
  • Sensor
  • Switch

Device support is provided by the underlying pyinsteon package. It is known to work with the 2413U USB and 2412S RS242 flavors of PLM and the 2448A7 USB stick. It has also been tested to work with the 2242 and 2245 Hubs.

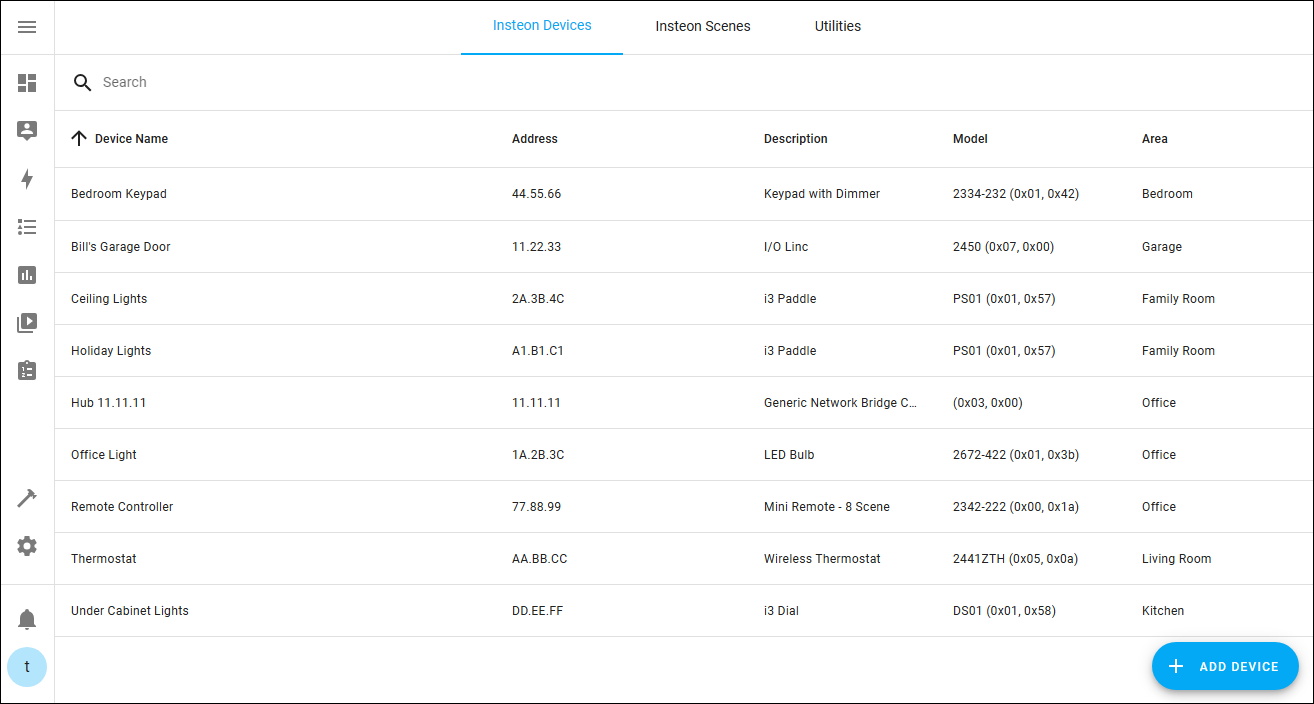

You can configure the Insteon integration by going to the integrations page inside the configuration panel.

Autodiscovery

The first time autodiscovery runs, the duration may require up to 60 seconds per device. Subsequent startups will occur much quicker using cached device information. If a device is not recognized during autodiscovery, trigger the device, such as toggling a button, to force the device to send a message to the modem. The device will then be discovered. You may need to trigger the device a few times. If for any reason this approach does not work, you can add the device to a device override in configuration options from the integrations page inside the configuration panel.

In order for a device to be discovered, it must be linked to the INSTEON Modem as either a responder or a controller.

Linking Devices to the INSTEON Modem

In order for any two Insteon devices to talk with one another, they must be linked. For an overview of device linking, please read the Insteon page on understanding linking. The Insteon Modem module supports All-Linking through Developer Tools service calls. The following services are available:

  • insteon.add_all_link: Puts the Insteon Modem (IM) into All-Linking mode. The IM can be set as a controller or a responder. If the IM is a controller, put the IM into linking mode then press the SET button on the device. If the IM is a responder, press the SET button on the device then put the IM into linking mode.
  • insteon.delete_all_link: Tells the Insteon Modem (IM) to remove an All-Link record from the All-Link Database of the IM and a device. Once the IM is set to delete the link, press the SET button on the corresponding device to complete the process.
  • insteon.load_all_link_database: Load the All-Link Database for a device. WARNING - Loading a device All-Link database may take a LONG time and may need to be repeated to obtain all records.
  • insteon.print_all_link_database: Print the All-Link Database for a device. Requires that the All-Link Database is loaded first.
  • insteon.print_im_all_link_database: Print the All-Link Database for the INSTEON Modem (IM).

If you are looking for more advanced options, you can use the insteon_tools command-line tool that is distributed with the pyinsteon Python module. Please see the documentation on the pyinsteon GitHub site. Alternatively, you can download HouseLinc, which runs on any Windows PC, or you can use Insteon Terminal which is open source and runs on most platforms. SmartHome no longer supports HouseLinc, but it still works. Insteon Terminal is a very useful tool but please read the disclaimers carefully, they are important.

Customization

The only configuration item that is necessary is the PLM port or Hub IP address, username and password so that Home Assistant can connect to the INSTEON Modem. This will expose all the supported INSTEON devices which exist in the modem’s ALL-Link database. However, devices will only be shown by their INSTEON hex address (e.g., “1A.2B.3C”) which can be a bit unwieldy. As you link and unlink devices using the ‘Set’ buttons, they’ll be added and removed from Home Assistant automatically.

You can use the normal Home Assistant device customization section of your configuration to assign friendly names and special icons to your devices. This is especially useful for setting device_class on your binary_sensor INSTEON devices.

Device Overrides

INSTEON devices are added to Home Assistant using the platform(s) that make the most sense given the model and features of the hardware. The features of the INSTEON devices are built into the Home Assistant platform. Changing the platform is not recommended.

There are two primary uses for the device override feature:

  • Devices that do not respond during autodiscovery. This is common for battery operated devices. Before using a device override, please trigger the device a few times and it will likely be discovered by Home Assistant.
  • Devices that have not been fully developed. This allows an unknown device to be mapped to a device that operates similarly to another device.

Device overrides can be set up using the integrations page inside the configuration panel.

INSTEON Scenes

Trigger an INSTEON scene on or off, is done via automations. Two services are provided to support this feature:

  • insteon.scene_on
    • group: (required) The INSTEON scene number to trigger.
  • insteon.scene_off
    • group: (required) The INSTEON scene to turn off
automation:
  # Trigger an INSTEON scene 25
  - id: trigger_scene_25_on
    alias: Turn on scene 25
    action:
      - service: insteon.scene_on
        group: 25

Events and Mini-Remotes

Mini-Remote devices do not appear as Home Assistant entities, they generate events. The following events are available:

  • insteon.button_on
    • address: (required) The Insteon device address in lower case without dots (e.g., 1a2b3c)
    • button: (Optional) The button id in lower case. For a 4-button remote the values are a to d. For an 8 button remote the values are a to h. For a one-button remote this field is not used.
  • insteon.button_off
    • address: (required) The Insteon device address in lower case without dots (e.g., 1a2b3c)
    • button: (Optional) The button id in lower case. For a 4-button remote the values are a to d. For an 8 button remote the values are a to h. For a one-button remote this field is not used.

This allows the mini-remotes to be configured as triggers for automations. Here is an example of how to use these events for automations:

automation:
  # 4 or 8 button remote with button c pressed
  - id: light_on
    alias: Turn a light on
    trigger:
      - platform: event
        event_type: insteon.button_on
    event_data:
      address: 1a2b3c
      button: c
    condition:
      - condition: state
        entity_id: light.some_light
        state: 'off'
    action:
      - service: light.turn_on
        entity_id: light.some_light

  # single button remote
  - id: light_off
    alias: Turn a light off
    trigger:
      - platform: event
        event_type: insteon.button_on
    event_data:
      address: 1a2b3c
    condition:
      - condition: state
        entity_id: light.some_light
        state: 'off'
    action:
      - service: light.turn_on
        entity_id: light.some_light

Manual configuration

Manual configuration is not required as all configuration options are available through the integrations page inside the configuration panel. However, manual setup is available using the following settings.

To set up an INSTEON Powerline Modem (PLM) device such as the 2413U, use the following configuration:

# PLM configuration variables
insteon:
  port: SERIAL_PORT

To set up an INSTEON Hub model 2245, use the following configuration:

# Hub 2245 configuration variables
insteon:
  host: HOST
  ip_port: IP_PORT
  username: USERNAME
  password: PASSWORD
  hub_version: 2

To set up an INSTEON Hub model 2242, use the following configuration:

# Hub 2242 configuration variables
insteon:
  host: HOST
  hub_version: 1

Additional configuration items are available:

insteon:
  <PLM or Hub configuration>
  device_override:
     - address: ADDRESS
       cat: CATEGORY
       subcat: SUBCATEGORY
       firmware: FIRMWARE
       product_key: PRODUCT_KEY
  x10_devices:
     - housecode: HOUSECODE
       unitcode: UNITCODE
       platform: PLATFORM
       steps: STEPS

Configuration Variables

port string (Optional)

The serial or USB port for your device, e.g., /dev/ttyUSB0 or COM3. Required for PLM setup.

host string (Optional)

The hostname or IP address of the Hub. Required with Hub.

ip_port integer Required

The IP port number of the Hub. For Hub model [2245] (i.e., Hub version 2) the default port is 25105. For the Hub model [2242] (i.e., Hub version 1) the default port is 9761. Use the Insteon app to find the port number for your specific Hub. Optional with Hub.

username string (Optional)

The username to login into the local Hub. You can find your Hub username on the bottom of the Hub or you can use the Insteon app. Required for Hub version 2 setup.

password string (Optional)

The password to login into the local Hub. You can find your Hub password on the bottom of the Hub or you can use the Insteon app. Required for Hub version 2 setup.

hub_version integer (Optional, default: 2)

The Hub version number where model [2242] is Hub version 1 and model [2245] is Hub version 2. Required for Hub version 1 setup.

device_override list (Optional)

Override the default device definition.

address string Required

is found on the device itself in the form 1A.2B.3C or 1a2b3c.

cat integer (Optional)

is found in the back of the device’s User Guide in the form of 0x00 - 0xff.

subcat integer (Optional)

is found in the back of the device’s User Guide in the form of 0x00 - 0xff.

firmware string (Optional)

are more advanced options and will typically not be used.

product_key integer (Optional)

are more advanced options and will typically not be used.

x10_devices list (Optional)

Define X10 devices to control or respond to.

housecode string Required

is the X10 housecode values a - p

unitcode integer Required

is the X10 unit code values 1 - 16

platform string Required

is the Home Assistant Platform to associate the device with. The following platforms are supported: binary_sensor: Used for on/off devices or keypad buttons that are read-only. light: Used for dimmable X10 devices. switch: Used for On/Off X10 devices.

dim_steps integer (Optional, default: 22)

is the number of dim/bright steps the device supports. Used for dimmable X10 devices only.

Autodiscovery

The first time autodiscovery runs, the duration may require up to 60 seconds per device. Subsequent startups will occur much quicker using cached device information. If a device is not recognized during autodiscovery, trigger the device, such as toggling a button, to force the device to send a message to the modem. The device will then be discovered. You may need to trigger the device a few times. If for any reason this approach does not work, you can add the device to the device_override configuration.

In order for a device to be discovered, it must be linked to the INSTEON Modem as either a responder or a controller.

Linking Devices to the INSTEON Modem

In order for any two Insteon devices to talk with one another, they must be linked. For an overview of device linking, please read the Insteon page on understanding linking. The Insteon Modem module supports All-Linking through Developer Tools service calls. The following services are available:

  • insteon.add_all_link: Puts the Insteon Modem (IM) into All-Linking mode. The IM can be set as a controller or a responder. If the IM is a controller, put the IM into linking mode then press the SET button on the device. If the IM is a responder, press the SET button on the device then put the IM into linking mode.
  • insteon.delete_all_link: Tells the Insteon Modem (IM) to remove an All-Link record from the All-Link Database of the IM and a device. Once the IM is set to delete the link, press the SET button on the corresponding device to complete the process.
  • insteon.load_all_link_database: Load the All-Link Database for a device. WARNING - Loading a device All-Link database may take a LONG time and may need to be repeated to obtain all records.
  • insteon.print_all_link_database: Print the All-Link Database for a device. Requires that the All-Link Database is loaded first.
  • insteon.print_im_all_link_database: Print the All-Link Database for the INSTEON Modem (IM).

If you are looking for more advanced options, you can use the insteon_tools command line tool that is distributed with the pyinsteon Python module. Please see the documentation on the pyinsteon GitHub site. Alternatively, you can download HouseLinc which runs on any Windows PC, or you can use Insteon Terminal which is open source and runs on most platforms. SmartHome no longer supports HouseLinc, but it still works. Insteon Terminal is a very useful tool but please read the disclaimers carefully, they are important.

Customization

The only configuration item that is necessary is the PLM port or Hub IP address, username and password so that Home Assistant can connect to the INSTEON Modem. This will expose all the supported INSTEON devices which exist in the modem’s ALL-Link database. However, devices will only be shown by their INSTEON hex address (e.g., “1A.2B.3C”) which can be a bit unwieldy. As you link and unlink devices using the ‘Set’ buttons, they’ll be added and removed from Home Assistant automatically.

You can use the normal Home Assistant device customization section of your configuration to assign friendly names and special icons to your devices. This is especially useful for setting device_class on your binary_sensor INSTEON devices.

Device Overrides

INSTEON devices are added to Home Assistant using the platform(s) that make the most sense given the model and features of the hardware. The features of the INSTEON devices are built into the Home Assistant platform. Changing the platform is not recommended.

There are two primary uses for the device_override feature:

  • Devices that do not respond during autodiscovery. This is common for battery operated devices. Before using a device override, please trigger the device a few times and it will likely be discovered by Home Assistant.
  • Devices that have not been fully developed. This allows an unknown device to be mapped to a device that operates similarly to another device.

Example Configuration with Options

# Full example of Insteon configuration with a device override

insteon:
  port: /dev/ttyUSB0
  device_override:
    - address: a1b2c3  # Hidden Door Sensor [2845-222]
      cat: 0x10
      subcat: 0x11

What NOT to do

Insteon Modem is a top-level integration and device discovery will identify the Home Assistant platform the device belongs in. As such, do not declare Insteon devices in other platforms. For example, this configuration will NOT work:

light:
  - platform: insteon
    address: 1a2b3c

INSTEON Scenes

Trigger an INSTEON scene on or off is done via automations. Two services are provided to support this feature:

  • insteon.scene_on
    • group: (required) The INSTEON scene number to trigger.
  • insteon.scene_off
    • group: (required) The INSTEON scene to turn off
automation:
  # Trigger an INSTEON scene 25
  - id: trigger_scene_25_on
    alias: Turn on scene 25
    trigger:
      - ...
    action:
      - service: insteon.scene_on
        data:
          group: 25

Events and Mini-Remotes

Mini-Remote devices do not appear as Home Assistant entities, they generate events. The following events are available:

  • insteon.button_on
    • address: (required) The Insteon device address in lower case without dots (e.g., 1a2b3c)
    • button: (Optional) The button id in lower case. For a 4-button remote the values are a to d. For an 8 button remote the values are a to h. For a one-button remote this field is not used.
  • insteon.button_off
    • address: (required) The Insteon device address in lower case without dots (e.g., 1a2b3c)
    • button: (Optional) The button id in lower case. For a 4-button remote the values are a to d. For an 8 button remote the values are a to h. For a one-button remote this field is not used.

This allows the mini-remotes to be configured as triggers for automations. Here is an example of how to use these events for automations:

automation:
  # 4 or 8 button remote with button c pressed
  - id: light_on
    alias: Turn a light on
    trigger:
      - platform: event
        event_type: insteon.button_on
    event_data:
      address: 1a2b3c
      button: c
    condition:
      - condition: state
        entity_id: light.some_light
        state: 'off'
    action:
      - service: light.turn_on
        entity_id: light.some_light

  # single button remote
  - id: light_off
    alias: Turn a light off
    trigger:
      - platform: event
        event_type: insteon.button_on
    event_data:
      address: 1a2b3c
    condition:
      - condition: state
        entity_id: light.some_light
        state: 'off'
    action:
      - service: light.turn_on
        entity_id: light.some_light
